5G Indoor CPE 3GPP Release 15 NR Multi LTE Bands 802.11AC VoNR VoLTE VoIP 2Gbps (DL) 1Gbps (UL)

Support Bands

5G NR: N1/N3/N8/N28/N41/N77/N78/N79

4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/

B28B, B32 can be customized;

4G TDD:

B34/B38/B39/B40/B41

Spec

Description

Chipset

5G/LTE:

UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz

Wi-Fi:

Realtek 8198D

RF standard

5G
NR (3GPP Release 15)

TDD-LTE/FDD-LTE

Memory

ROM: 2Gb

RAM: 4Gb DDR3

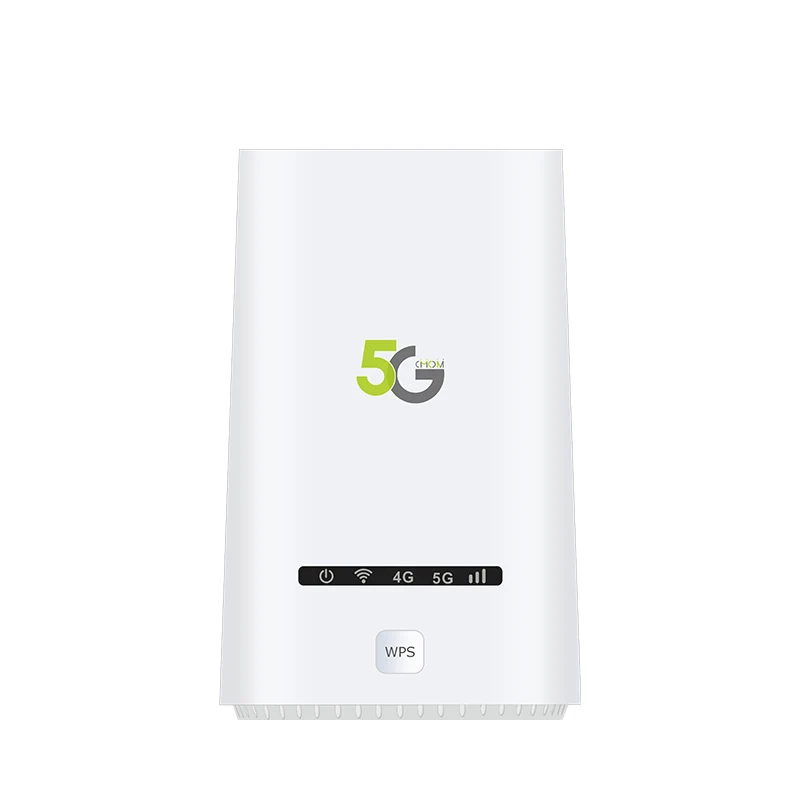

Indictors

1.Power

2.Wi-Fi Switch Status

3.4G Internet

4.5G Internet

5.Signal Bar Indicator

Buttons

1.Power ON/OFF Button

2.WPS Button

3.Reset Key

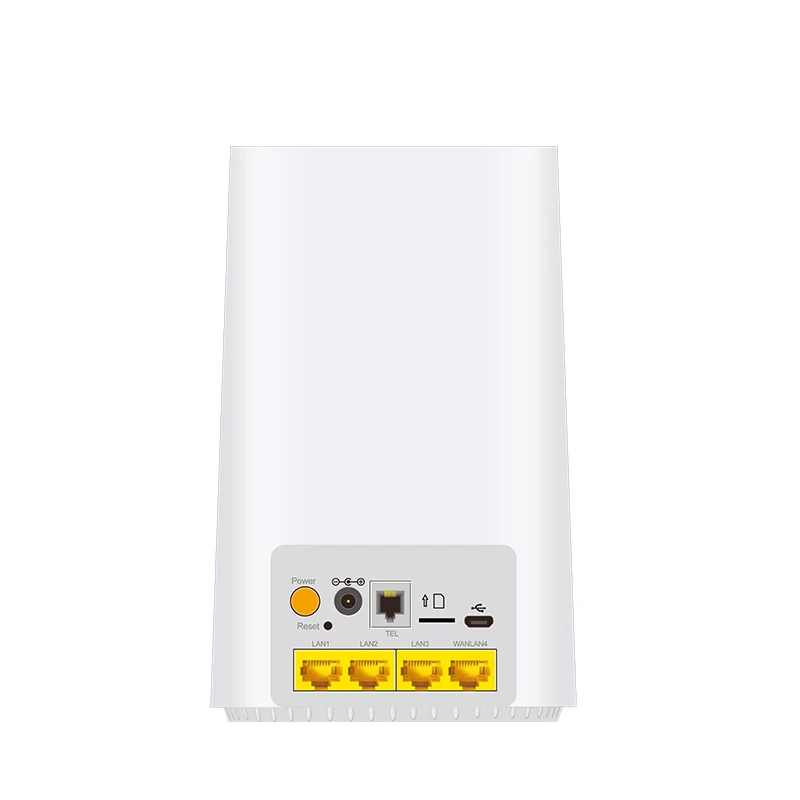

Interfaces

1.GE LAN Port * 4

2.RJ11 Port * 1( no)

3.SIM Slot * 1 (3FF)

4.DC Socket

5.TYPE_C USB3.1 for Manufacture

LAN/WAN

GE
Port * 4,

(Currently
DHCP/STATIC mode).

Power Supply

AC100V~240V,50Hz~60Hz

DC 12V DC±10% 2A

Power Consumption

< 24W

Dimensions

117mm*127mm*185mm

Weight

580g

Feature

Capability

Operating Temperature

0°C~40°C

Storge Temperature

-20°C~70°C

Operating humidity

95% Maxton-condensing

Storage humidity

95% Maxton-condensing

Feature

Capability

Support Bands

5G NR: N1/N3/N8/N28/N41/N77/N78/N79

4G FDD: B1/B2/B3/B5/B7/B8/B20/B28A/

B28B, B32 can be customized;

4G TDD:

B34/B38/B39/B40/B41

ENDC

B3/B7/B8/B20-N1

B1/B20-N3

B1/B7-N8

B1/B3-N28

B3/B39-N41

B1/B3-N77

B1/B3/B5/B7/B8/B20/B28-N78

B3/B39/B40-N79

3CC

CA
Combination (CA Maximum Aggregated Bandwidth, MHz)

B40+B40+B40(50)

B41+B41+B41(60)

B39+B39+B41(50)

B39+B41+B41(60)

B1+B3+B3/B5/B8/B20/B28(50)

B1+B3+B7/B32(60)

B1+B7+B8/B20(50)

B1+B8+B20(45)

B1+B20+B32(50)

B3+B3+B7/B8(50)

B3+B3+B20(40)

B3+B7+B20/B28(50)

B3+B7+B7(60)

B3+B8+B20(45)

B3+B20+B32(50)

B7+B7+B20(50)

CA

(Inter/Intra 2CA)

2CC DL
intra-band contiguous: 38C, 39C, 40C, 41C, 3C

2CC DL
inter-band:

39A-41A,
41A-39A, 3A-41A, 8A-41A, 1A-3A, 3A-1A

2CC UL
intra-band contiguous: 38C, 39C, 40C, 41C, 3C

MIMO

5G DL MIMO 4*4, UL MIMO 1*1

LTE:MIMO2*2

WIFI：

MIMO 2*2(5G)

MIMO 2*2(2.4G)

5G/4GTX/RX

2T4R/1T2R

Output Power@25℃

5G NR: 23+-2dBm

LTE: 23+-2dBm

5G/4G
Antenna

4 Built-in 5G
antennas

2 Built-in 4G
antennas

5G/4G Antenna Gain

5
dB
